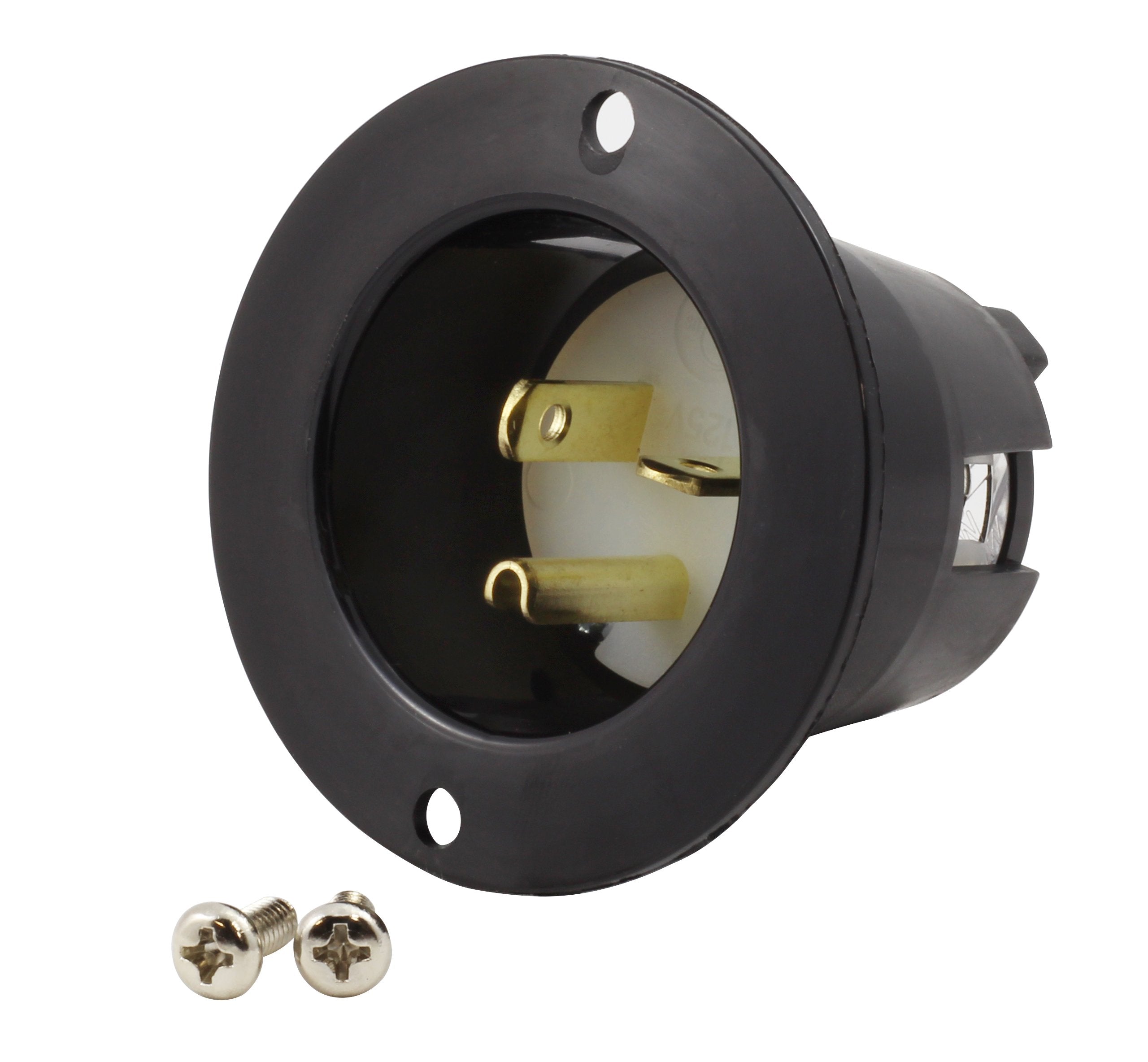

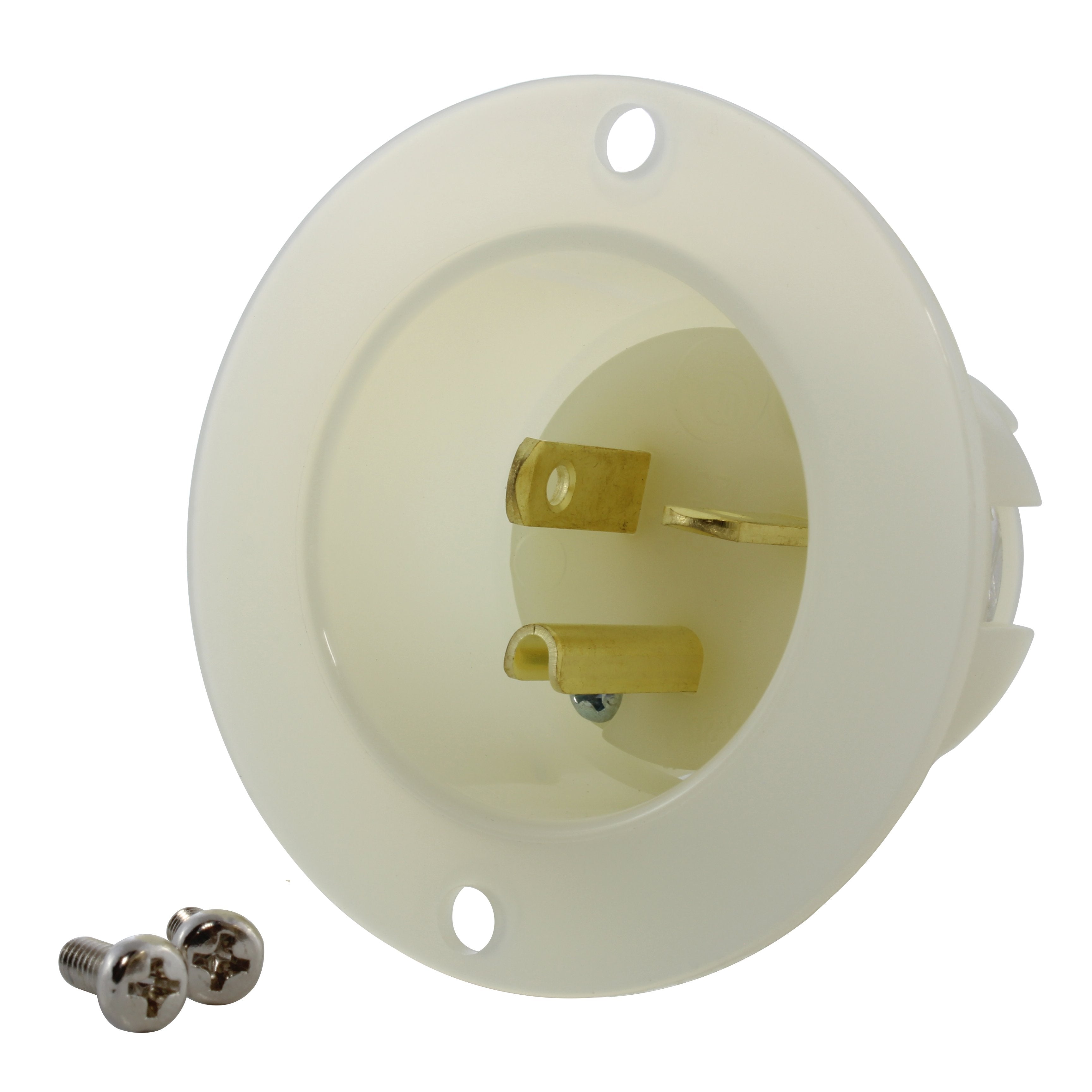

AC WORKS® [ASIN520P] 20A 125V NEMA 5-20P Flanged Power Input Inlet
This AC WORKS® brand inlet wiring device is a heavy-duty power input connection device. It is used for an industrial and commercial grade flange inlet. This inlet works with 12 or 10 AWG (American Wire Gauge) copper wire and is commonly used for boats, RVs, and small trailers or cabins.

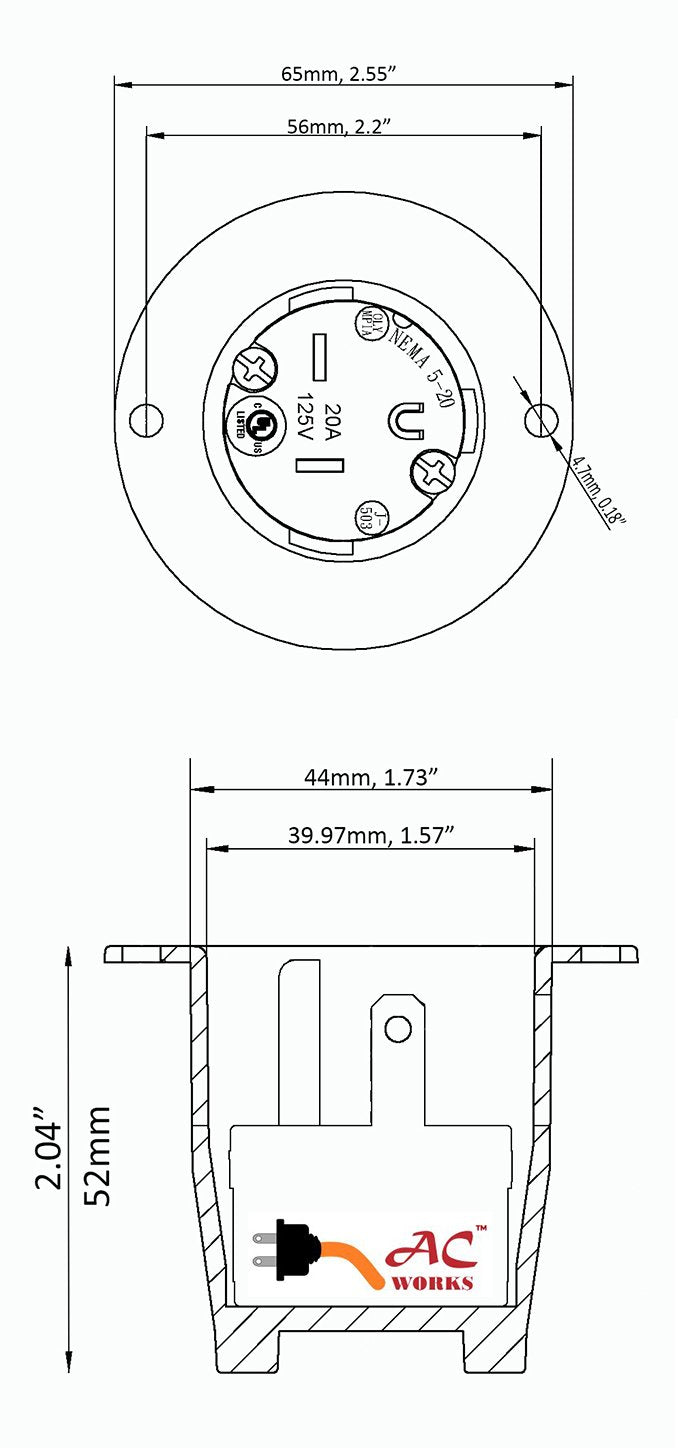

This product requires mounting holes with a saw size between 1.75'' (44.45mm) to 2.0'' (50.80mm).
Note: 18 Gauge is for 10 Amp, 16 Gauge is for 13 Amp, 14 Gauge is for 16 Amp, 12 Gauge is for 20 Amp, and 10 Gauge is for 30 Amp.
The product features a 20 Amp household power input connection [NEMA 5-20P] and is a straight blade flange inlet. It has a 2-pole, 3-wire grounding system with a nylon casing and is back wired. Other popular uses for this product are RV and Electric Vehicle charging ports. Included with your purchase is a 1-year limited warranty.
California Residents: See Proposition 65 Information
- RV/EV Camp power inlet
- 20 Amp, 125 Volt Inlet

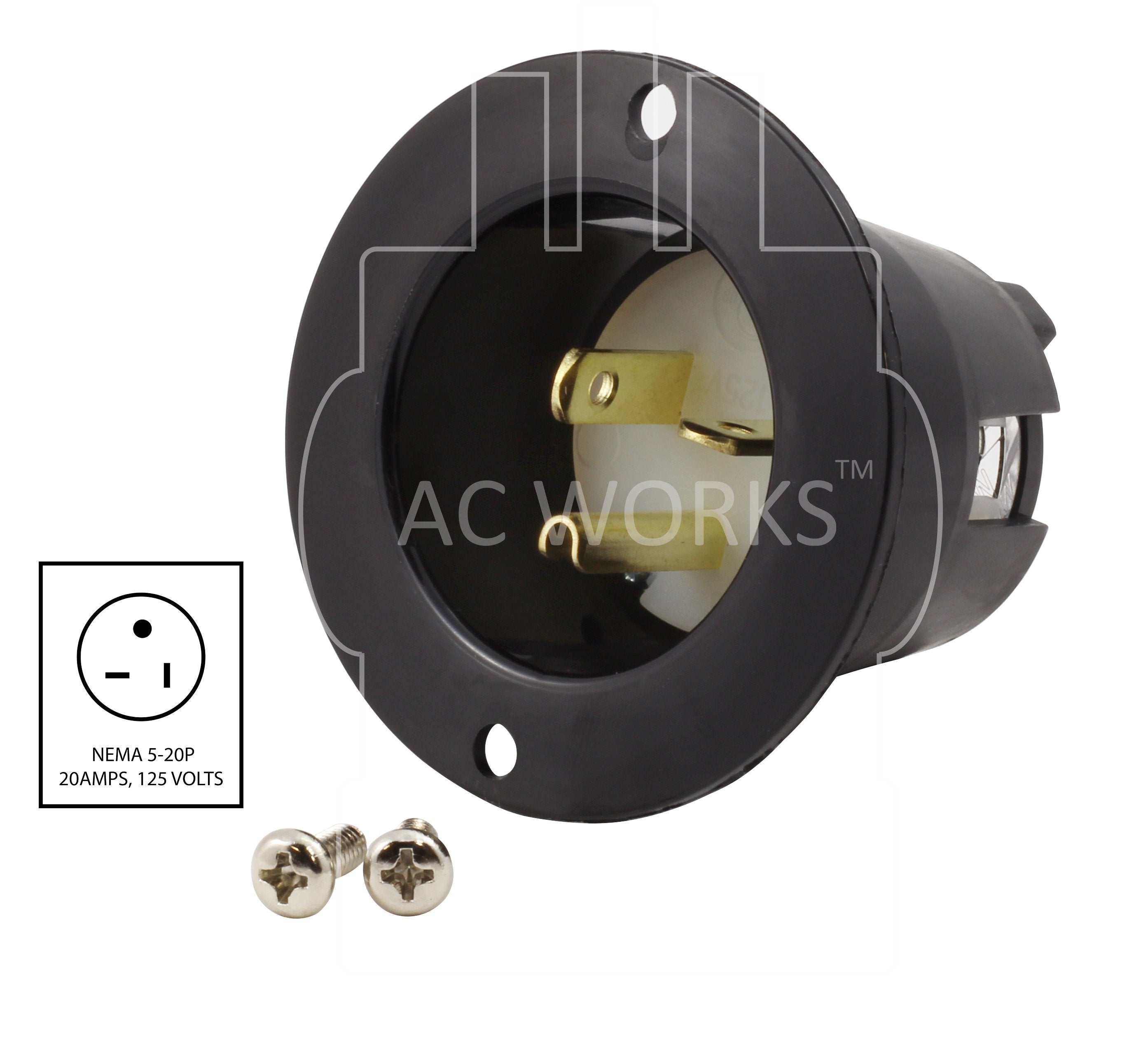

- NEMA 5-20P Power Inlet
- cULus E237606
- 1-year limited warranty
Downloads
ASIN520P Product Specification Sheet
