AC WORKS® [ASINL520P-FC] 20A 125V L5-20P Power Input Inlet UL and C-UL Listed with Weather Cover

  • $25.99 CAD
  • Save $13 CAD


This AC WORKS® brand inlet wiring device [ASINL520PFC] is a heavy-duty power input connection device with a weather cover.  It is used for an industrial and commercial grade flange inlet.  This inlet works with 12 or 10 AWG (American Wire Gauge) copper wire and is commonly used for boats, RV's and small trailers, cabins, residential, transfer switches, and generator power.  Included with your purchase is a 1-year limited warranty.

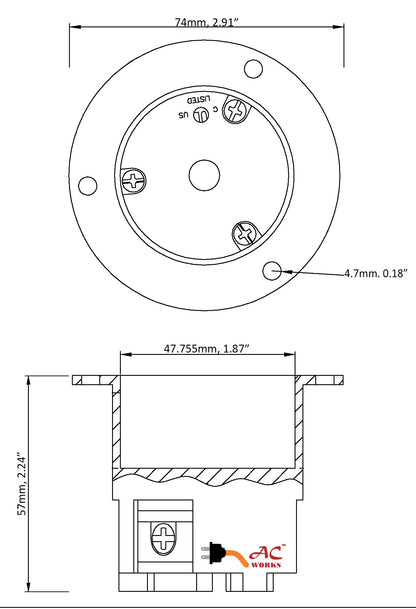

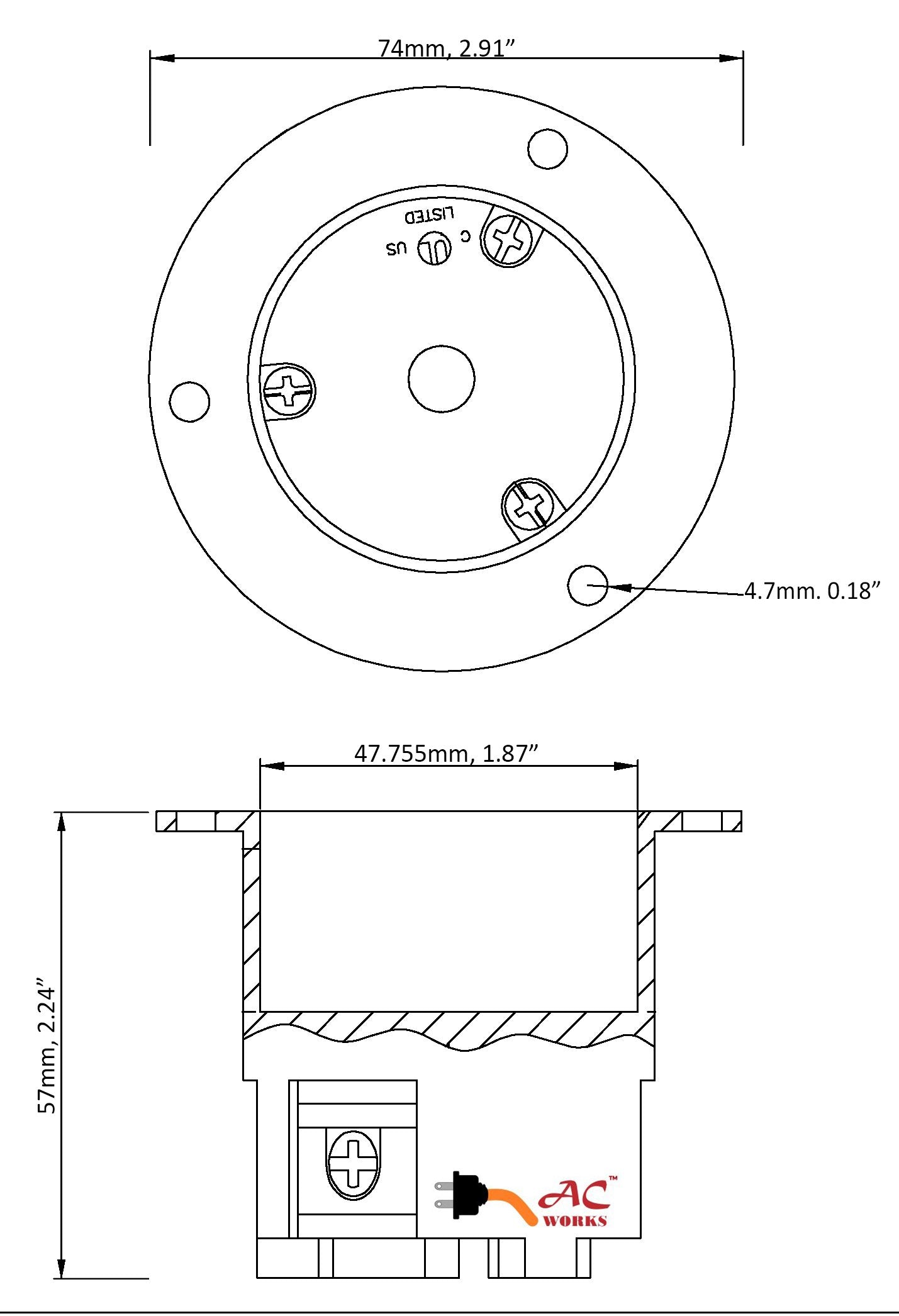

This product requires mounting holes with a saw size between 2.10'' (53.34mm) to 2.3'' (58.42mm).

Note: 18 Gauge wire is for 10 Amp, 16 Gauge wire is for 13 Amp, 14 Gauge wire is for 16 Amp, 12 Gauge wire is for 20 Amp, and 10 Gauge wire for 30 Amp

Features

  • 20 Amp, 125 Volt Inlet with Weather Cover
  • NEMA L5-20P Locking Power Inlet
  • UL and C-UL Certified, E237606
  • 1-Year Limited Warranty

Common Uses

  • Generator
  • Transfer Switch
  • Cabin Power
  • Residential

Downloads

15, 20 and 30 Amp Straight Blade or Locking Inlets

AC WORKS® Brand Limited Warranty

California Proposition 65
