AC WORKS brand DIY installation 20 amp household outlet
NEMA 5-20R DIy outlet
DIY t-blade outlet with weather proof back cover
household outlet with weatherproof front cover
AC WORKS brand replacement outlet
DIY household outlet with cover
NEMA 5-20R household outlet assembly without cover

AC WORKS® [ASOU520R-WC] 15/20A 125V Household Flanged Outlet with Covers UL and C-UL Listed

  • Save $2.50 CAD

This AC WORKS® brand outlet wiring device [ASOU520R-WC] is a heavy-duty power outlet device with covers.  It is used for an industrial and commercial grade flange outlet.  This outlet works with 16, 14, 12 AWG (American Wire Gauge) copper wire and is commonly used for Residential, Commercial, and Industrial power.  Included in your purchase is a 1-year limited warranty.

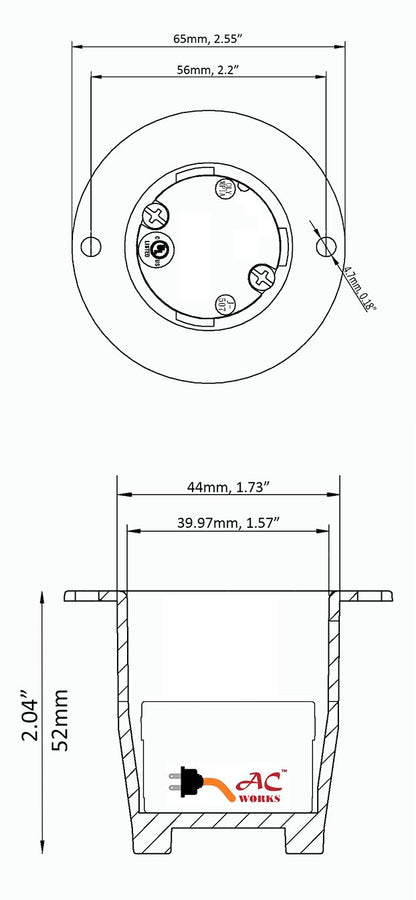

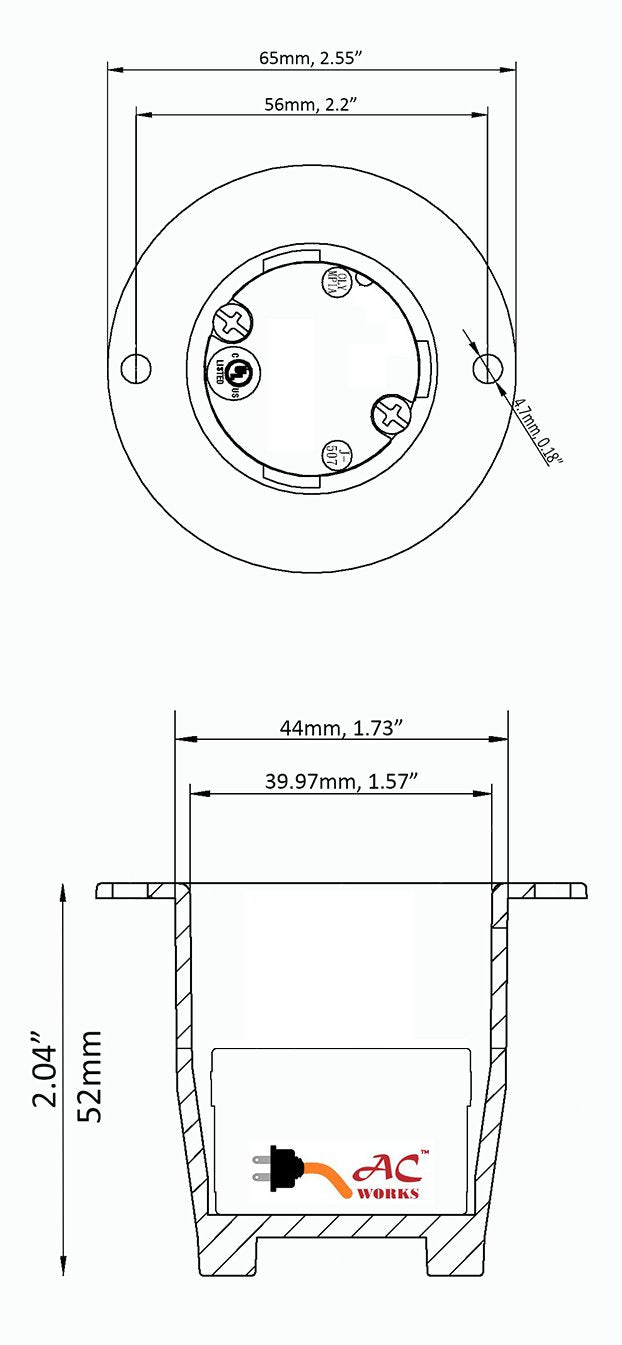

This product requires mounting holes with a saw size between 1.75'' (44.45mm) to 2.0'' (50.80mm).

Note: 18 Gauge wire is for 10 Amp, 16 Gauge wire is for 13 Amp, 14 Gauge wire is for 16 Amp, 12 Gauge wire is for 20 Amp, and 10 Gauge wire is for 30 Amp.

Features

  • 15/20 Amp, 125 Volt Outlet with Front Cover and Back Boot Cover
  • NEMA 5-15R - NEMA 5-20R  Power Outlet
  • UL and C-UL Certified, Conforms to E237606
  • Durable Construction and Compact Design with Thick Quality Copper Connection

Common Uses

  • Residential
  • Commercial
  • Industrial

Downloads

AC WORKS® Brand Limited Warranty

California Residents Proposition 65 Download

15-20-30 Amp Straight Blade or Locking Inlet User Manual

Video
