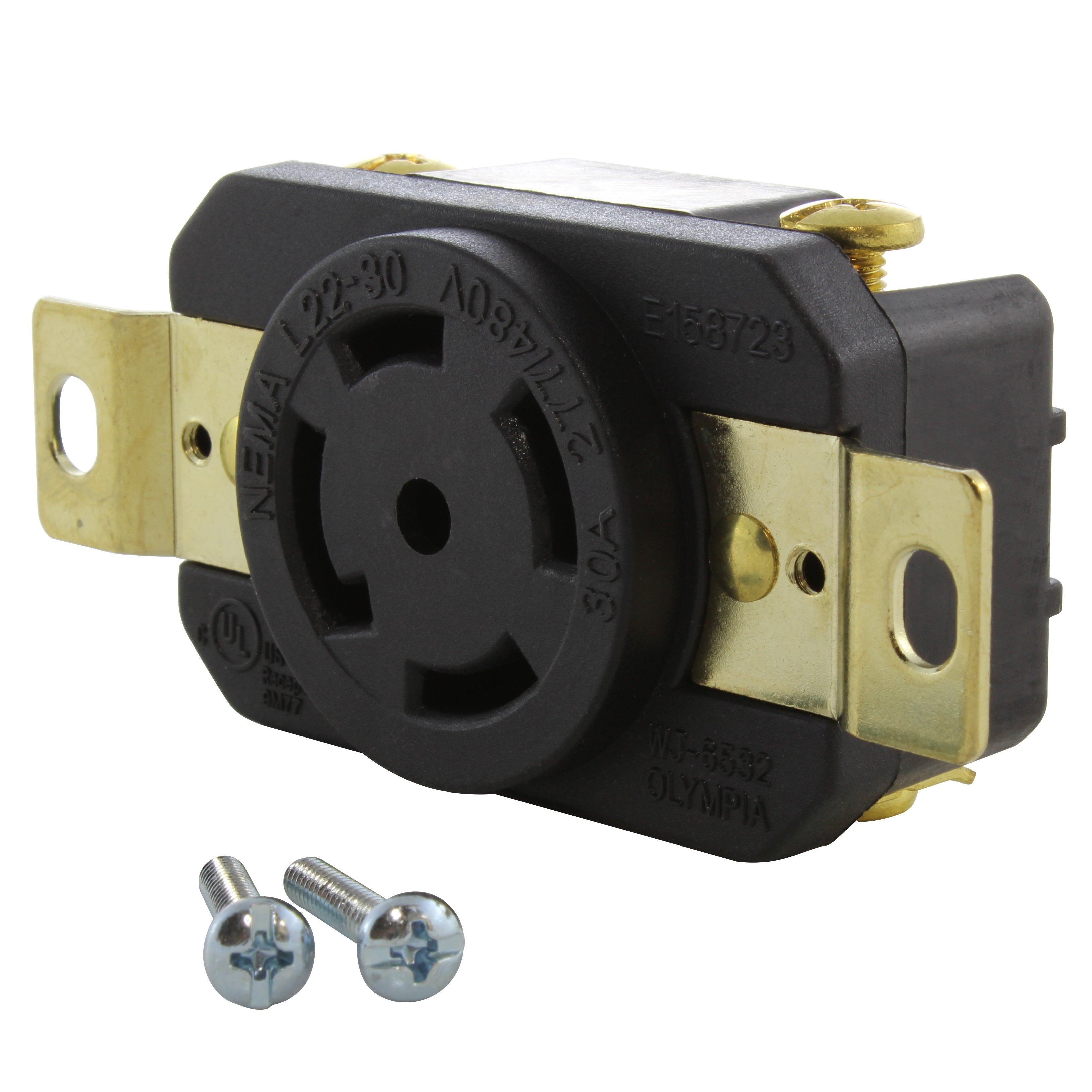

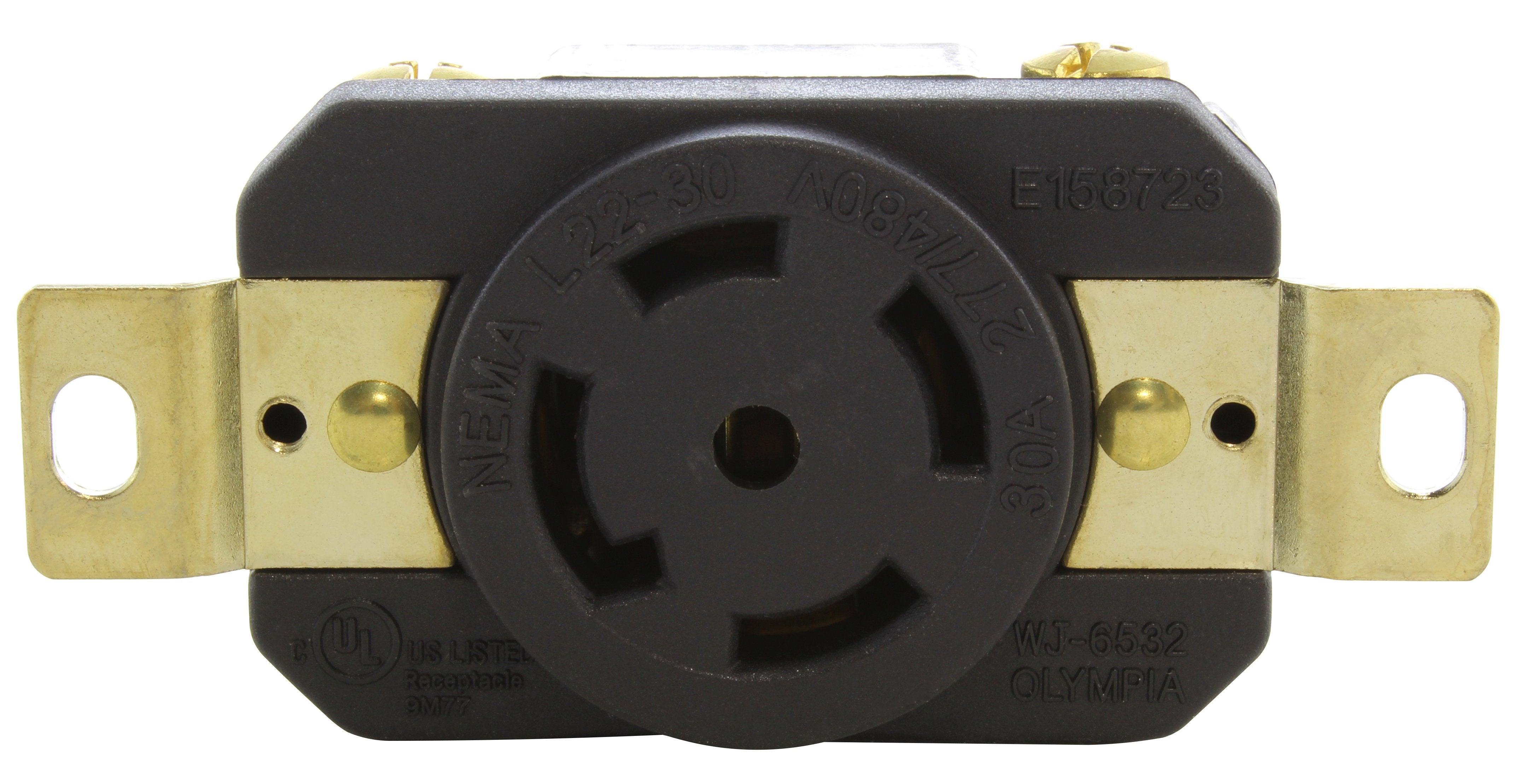

AC WORKS® [FML2230R] 30A 277/480V NEMA L22-30R Flush Mount Locking Industrial Grade Receptacle
This AC WORKS® brand female outlet receptacle features a 4-pole, 5-wire grounding system. It is a NEMA L22-30R, 30 Amp, 277/480 Volt flush mount locking design. This product is installed into your generator to repair or change your generator receptacle. It features chemical and impact-resistant housing along with a quick installation process. The FML2230R is UL and C-UL certified. Included with your purchase is a 1-year limited warranty.
Note: 18 Gauge wire is for 10 Amp, 16 Gauge wire is for 13 Amp, 14 Gauge wire is for 16 Amp, 12 Gauge wire is for 20 Amp, and 10 Gauge wire for 30 Amp
Features
- NEMA L22-30R, 30 Amp, 277/480 Volt Flush Mount
- Convention Location Locking Receptacle
- 4-Pole and 5-Wire Grounding
- Popular for Use in Industrial and Warehouse Equipment
- UL and C-UL Certified, Conforms to E237606
Common Uses
- Industrial
- Warehouse Equipment
Downloads
