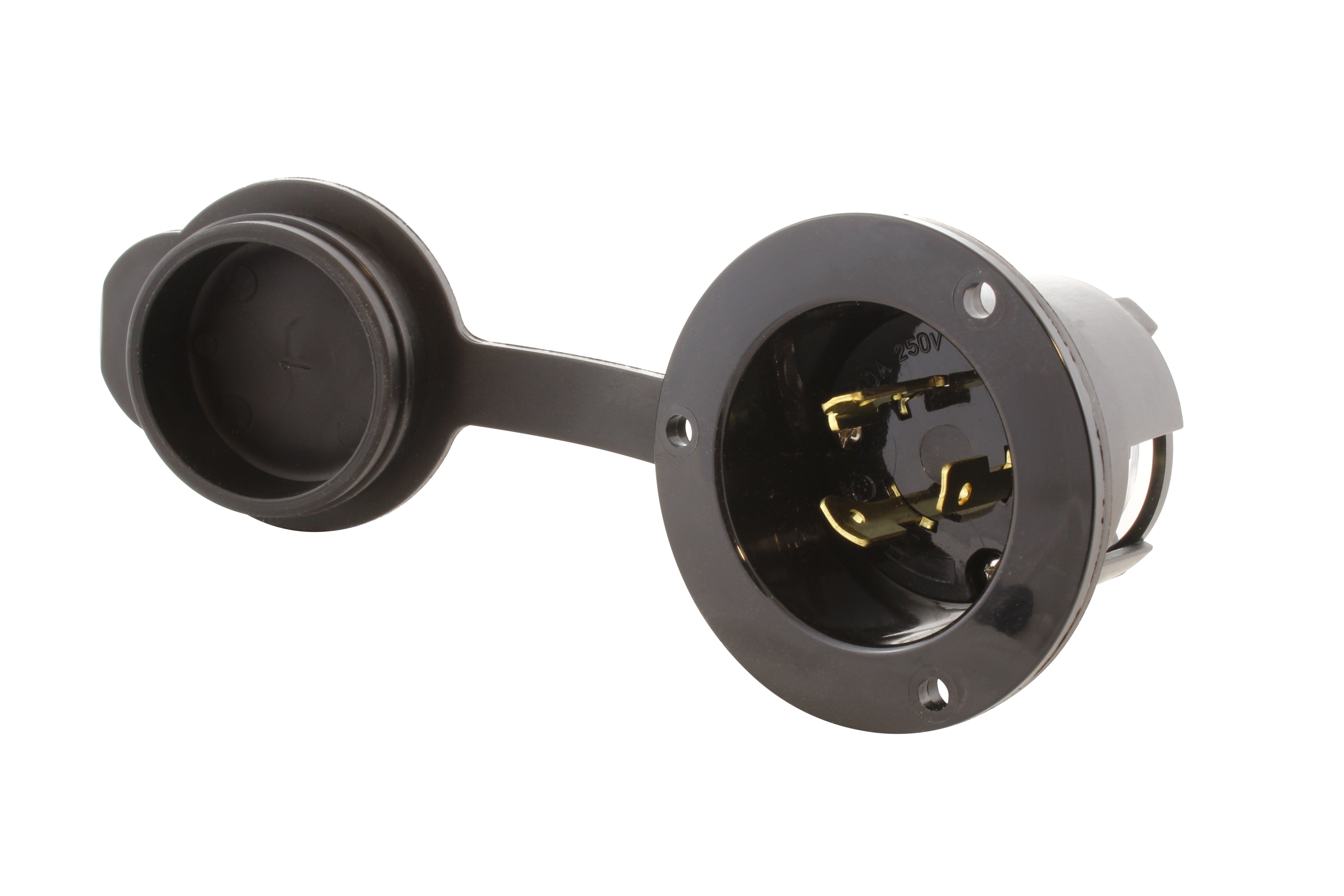

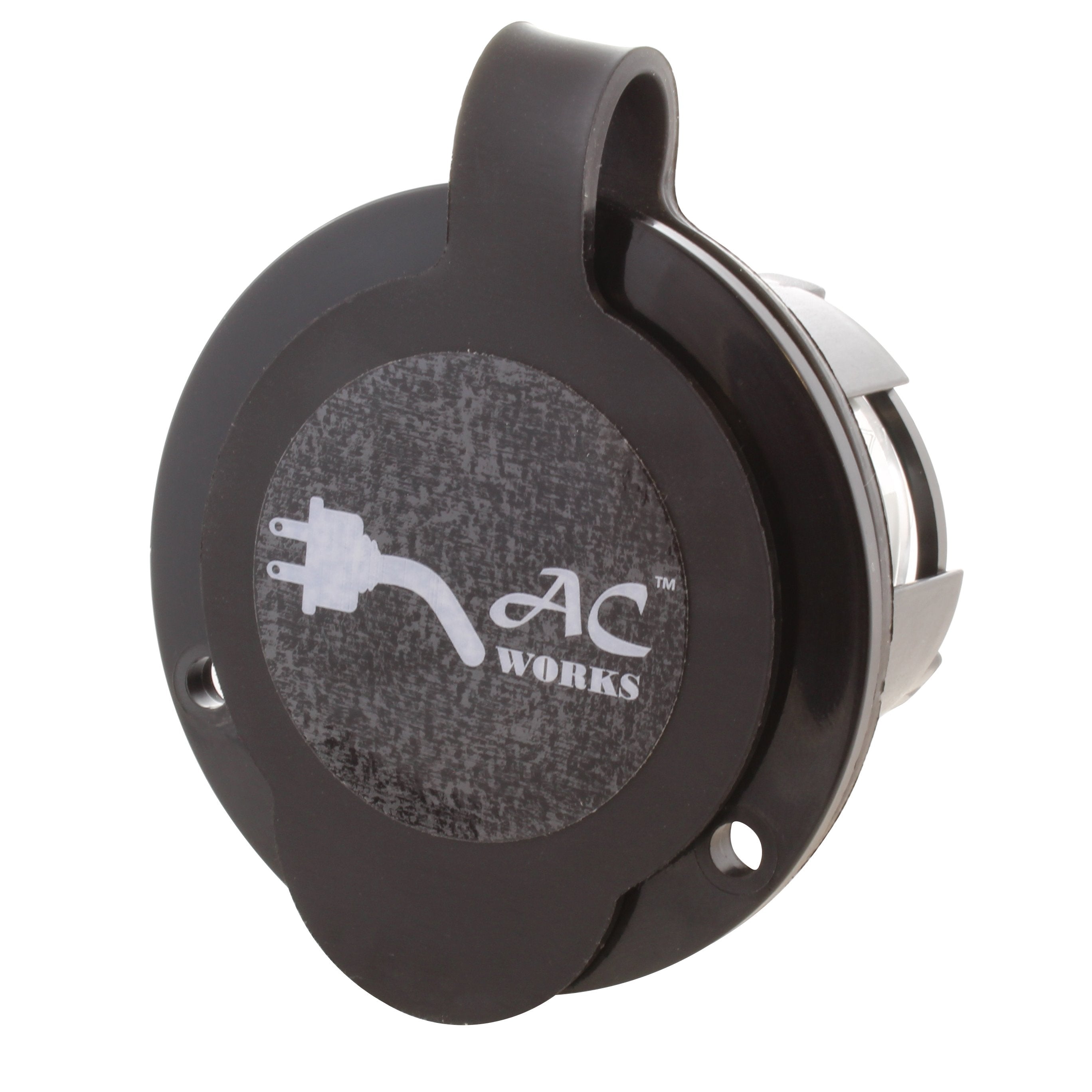

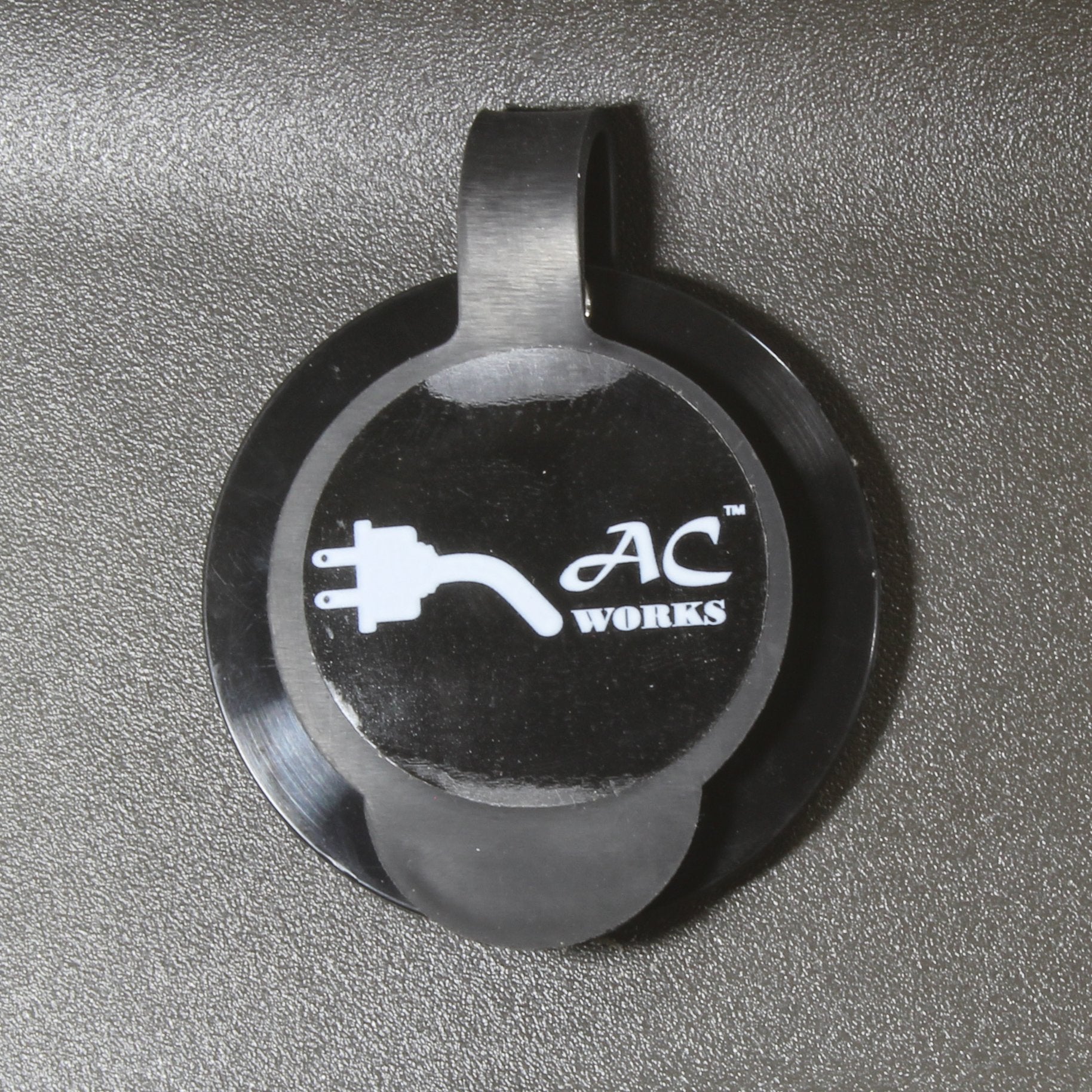

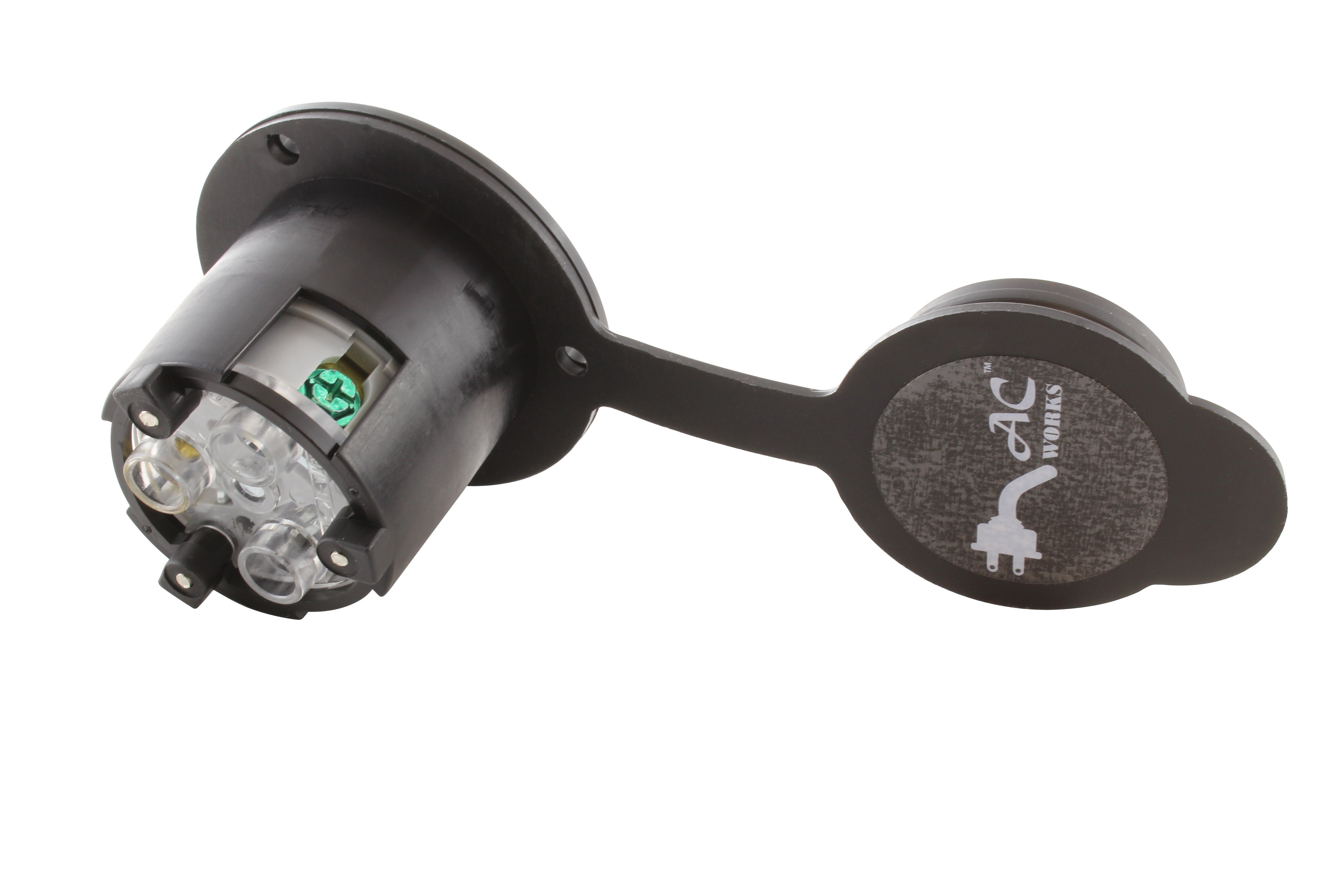

AC WORKS® [ASINL620P-FC] 20A 250V L6-20P Power Input Inlet UL and C-UL Listed with Weather Cover
This AC WORKS® brand inlet wiring device [ASINL620P-FC] is a heavy-duty power input connection device. The L6-20 inlet is used for an industrial and commercial grade flange inlet. This inlet works with 12 or 10 AWG (American Wire Gauge) copper wire and is commonly used for industrial equipment. Included with your purchase is a 1-year limited warranty.

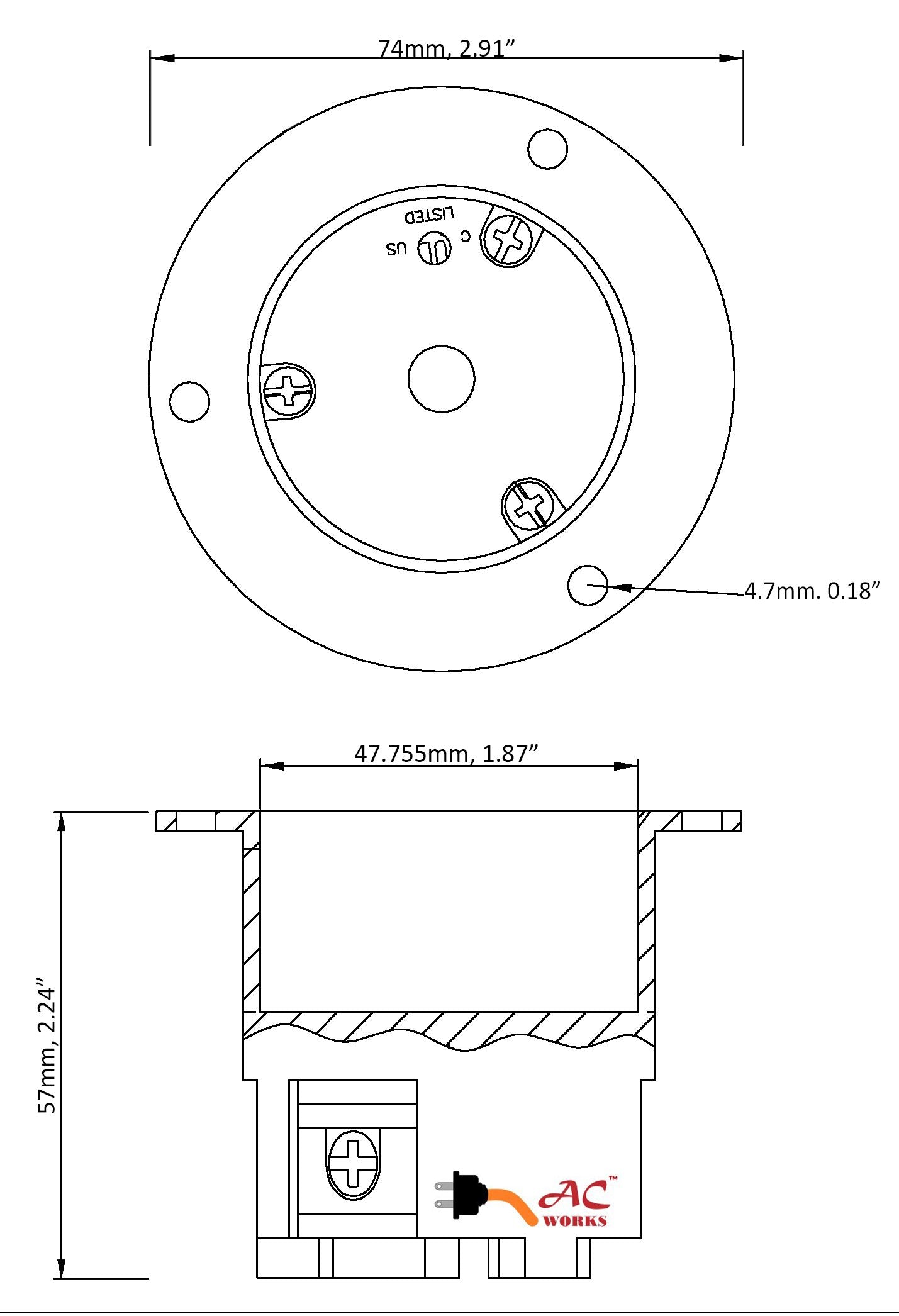

This product requires mounting holes with a saw size between 2.10'' (53.34mm) to 2.3'' (58.42mm).
Note: 18 Gauge wire is for 10 Amp, 16 Gauge wire is for 13 Amp, 14 Gauge wire is for 16 Amp, 12 Gauge wire is for 20 Amp, and 10 Gauge wire for 30 Amp
California Residents: See Proposition 65 Information
- Industrial Power Inlet
- 20 Amp, 250 Volt Inlet

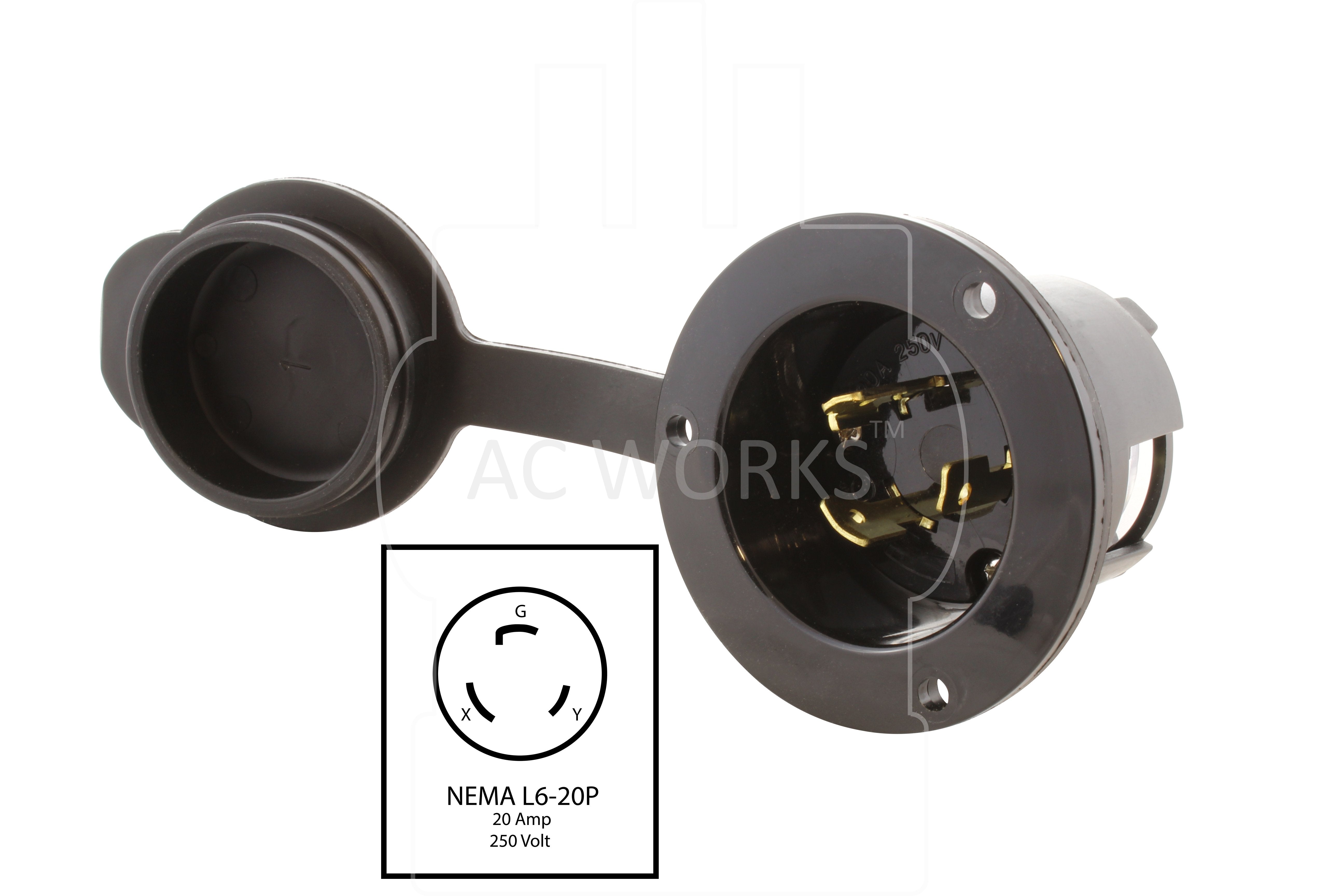

- NEMA L6-20P Locking Power Inlet
- cULus E237606
- 1-Year Limited Warranty
