AC WORKS® [ASINL620P-FC] 20A 250V L6-20P Power Input Inlet UL and C-UL Listed with Weather Cover
This AC WORKS® brand inlet wiring device [ASINL620P-FC] is a heavy-duty power input connection device. The L6-20 inlet is used for an industrial and commercial grade flange inlet. This inlet works with 12 or 10 AWG (American Wire Gauge) copper wire and is commonly used for industrial equipment, transfer switch, and generator power. Included with your purchase is a 1-year limited warranty.

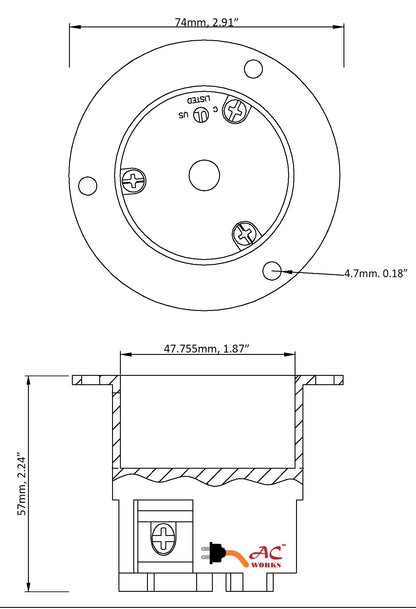

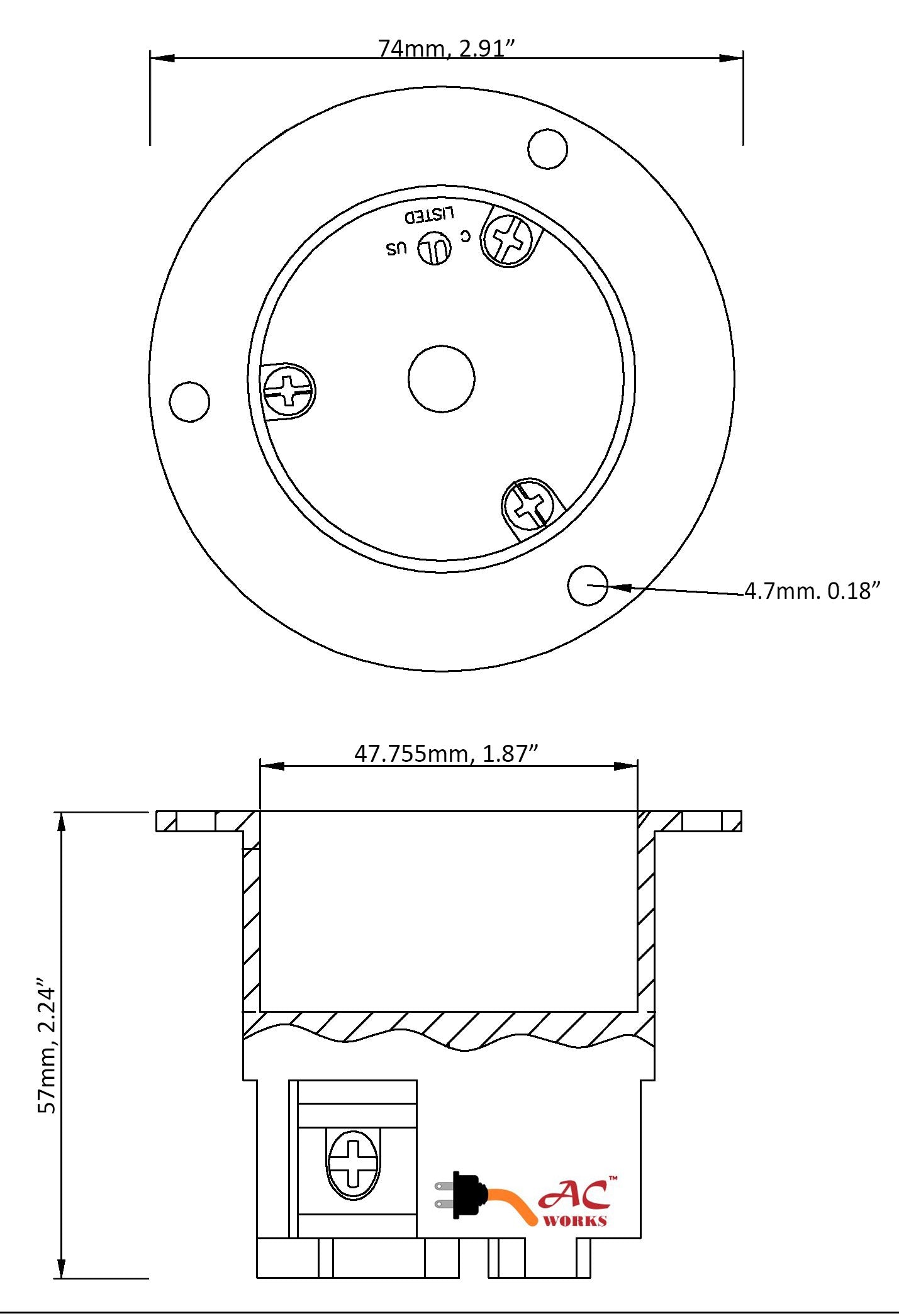

This product requires mounting holes with a saw size between 2.10'' (53.34mm) to 2.3'' (58.42mm).
Note: 18 Gauge wire is for 10 Amp, 16 Gauge wire is for 13 Amp, 14 Gauge wire is for 16 Amp, 12 Gauge wire is for 20 Amp, and 10 Gauge wire for 30 Amp
Features
- 20 Amp, 250 Volt Inlet
- NEMA L6-20P Locking Power Inlet
- UL and C-UL Certified, E237606
- 1-Year Limited Warranty
Common Uses
- Generator
- Transfer Switch
- Cabin Power
- Industrial
Downloads
AC WORKS® Brand Limited Warranty
15, 20 and 30 Amp Straight Blade or Locking Inlets
