AC WORKS® [TEL530] Temp Power L5-30P 30A 3-Prong Locking Plug to CS6364 50A Connector

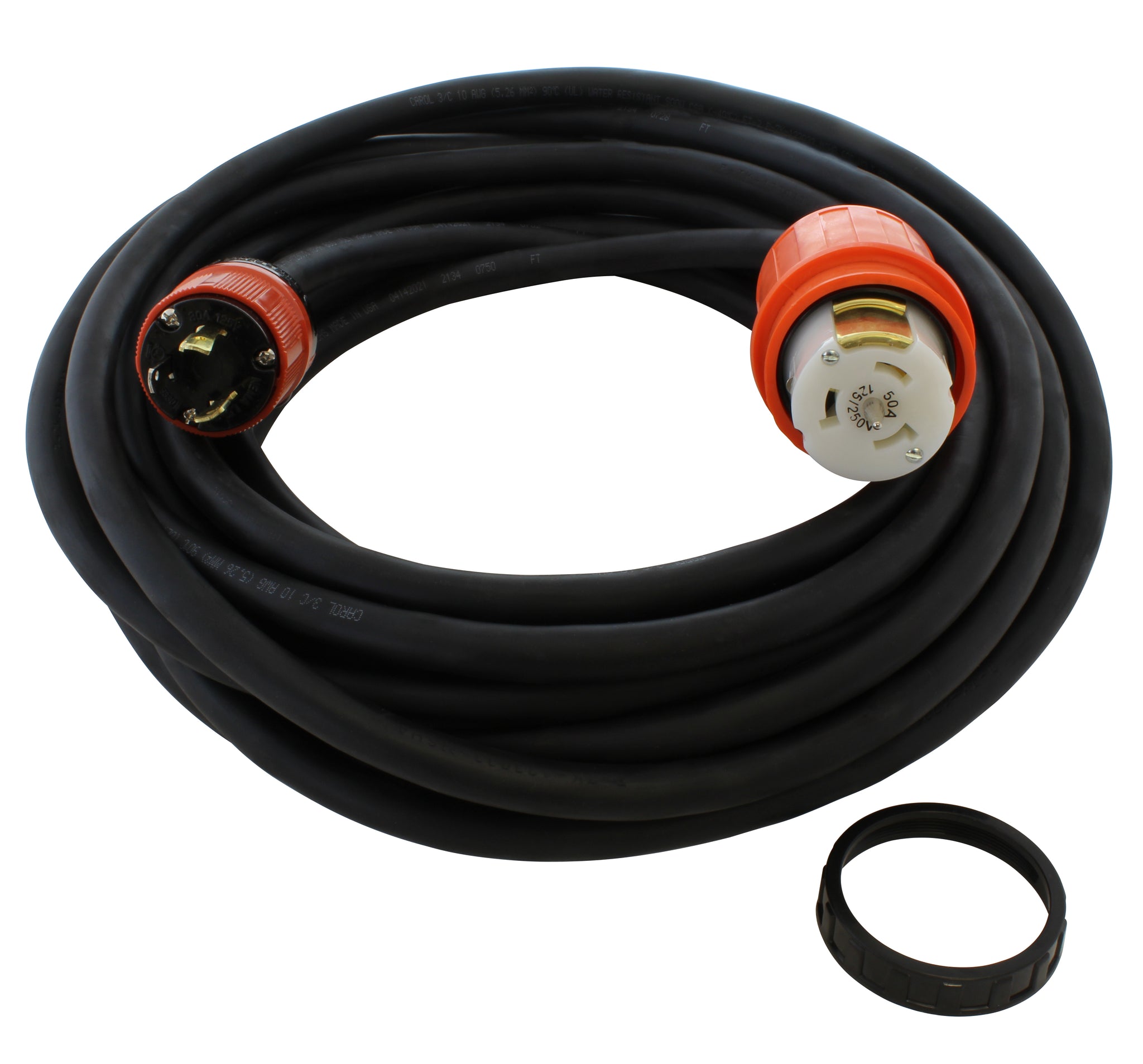

This AC WORKS® brand temporary power adapter [TEL530] is very durable with SOOW 10/3 30 Amp copper wire and a 600 Volt jacket.  It is a NEMA L5-30 to CS6364.  The NEMA L5-30 is a 30 Amp, 125 Volt, 3-prong locking male plug.  The CS6364 is a 50 Amp, 125/250 Volt locking temporary female connector.  The product is for heavy-duty outdoor use and its maximum operating power is 3750 Watts.  Included with your purchase is a 5-year limited warranty.

Features

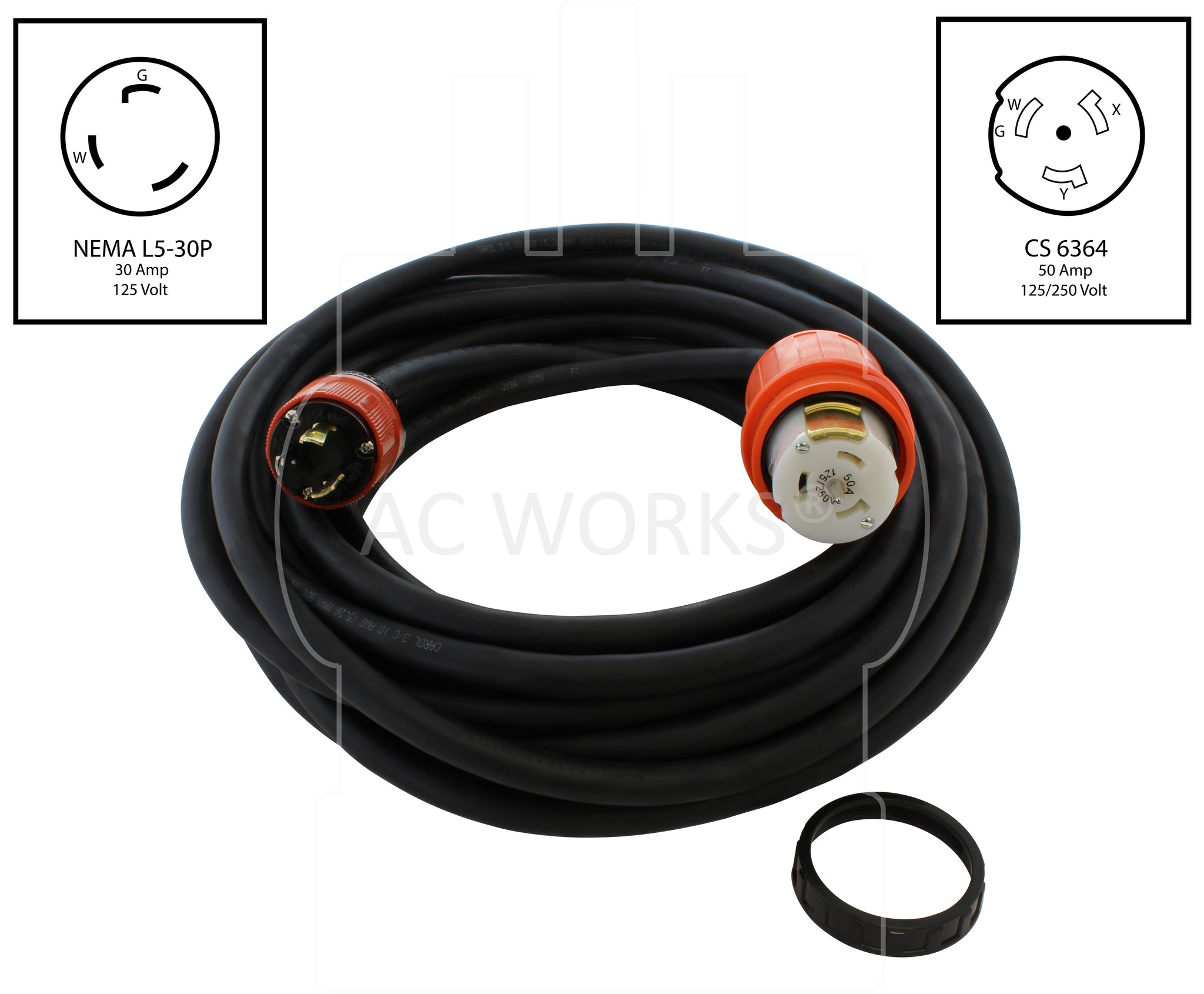

• NEMA L5-30 to CS6364
• NEMA L5-30P, 30 Amp, 125 Volt, 3-Prong Locking Male Plug
• CS6364, 50 Amp, 125/250 Volt, CA Standard Locking Female Connector with Weather-Tight Boot
• SOOW 10/3 Super Duty 30 Amp Copper Wire with 600 Volt Rubber Jacket
• Cable cULus E313867
• Male Plug cULus E237606
• Female Connector UL E57672, CSA 81290
• 5-year Limited Warranty

Common Uses

• Temporary Power Applications
• Emergency and Back Up Power
• Transfer Switch
