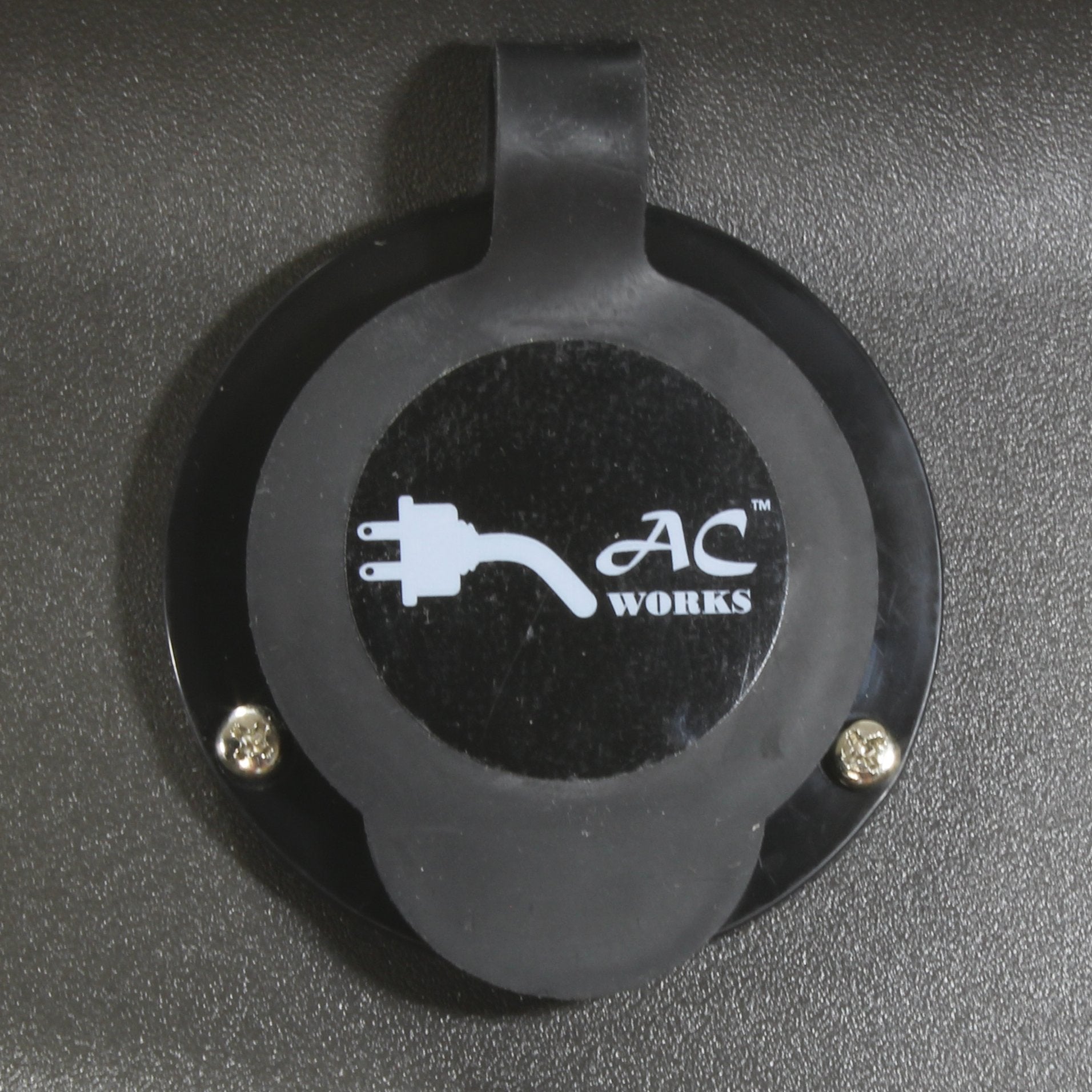

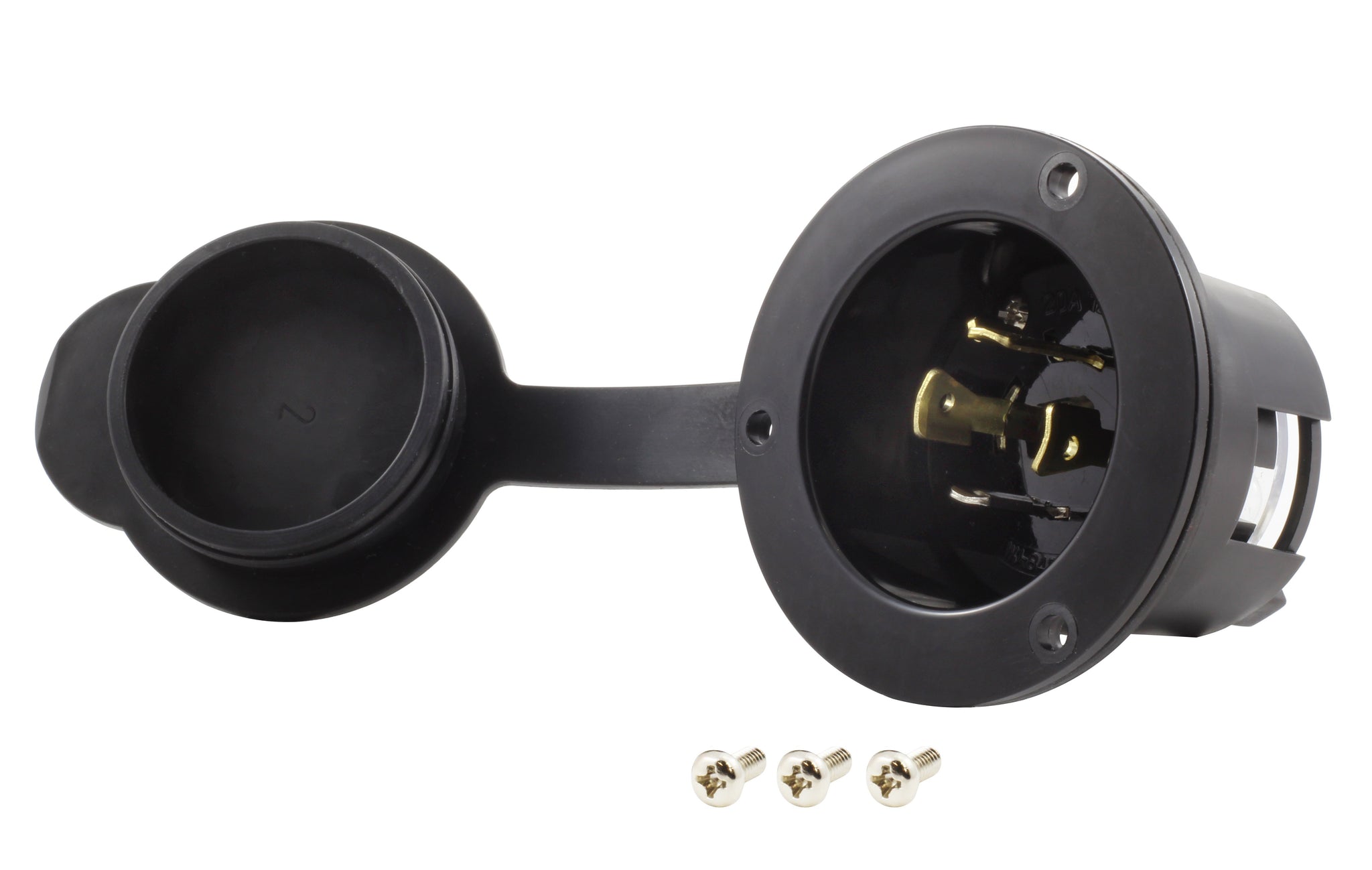

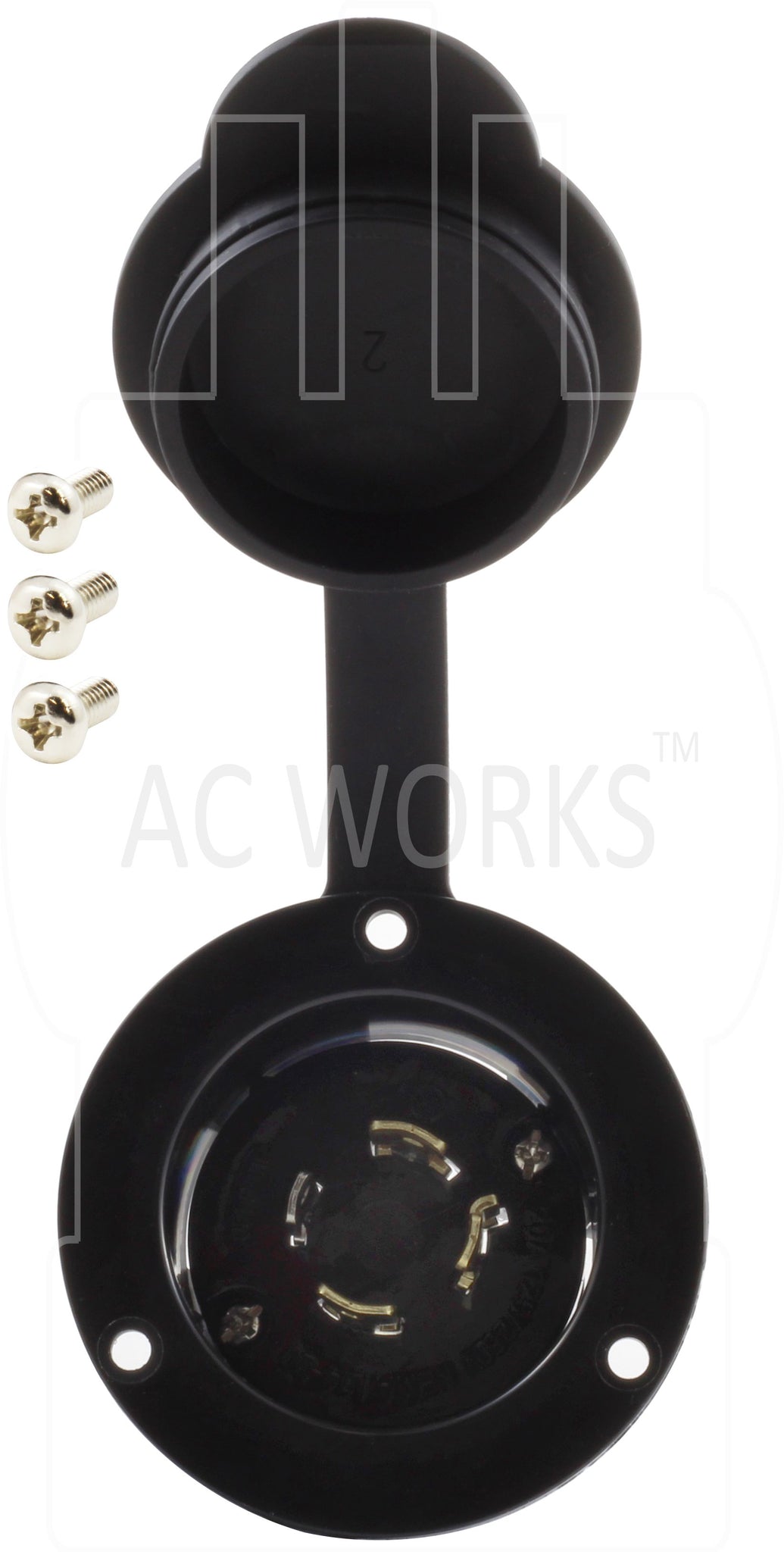

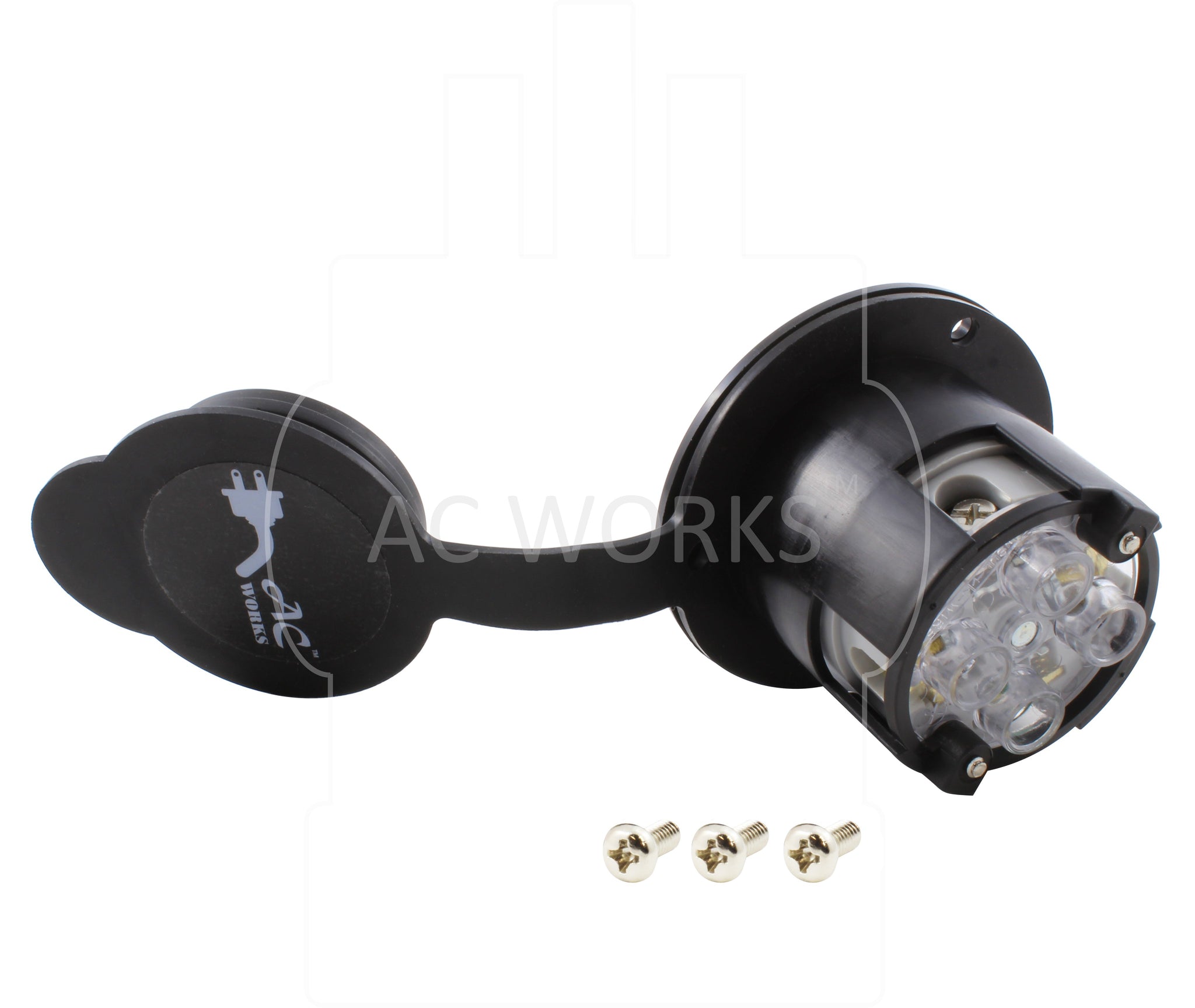

AC WORKS® [ASINL1420P-FC] 20A 125/250V L14-20P Power Input Inlet with Weather Cover
This AC WORKS® brand inlet wiring device is a heavy-duty power input connection device with a weather-tight cover. It is used for an industrial and commercial grade flange inlet. This inlet works with a 12 AWG (American Wire Gauge) or above, copper wire, and is common in residential use, transfer switch, cabins, and generators. Included in your purchase is a 1-year limited warranty.
This product requires mounting holes with a saw size between 2.25'' (57.15mm) to 2.5'' (63.5mm).
Note: 18 Gauge wire is for 10 Amp, 16 Gauge wire is for 13 Amp, 14 Gauge wire is for 16 Amp, 12 Gauge wire is for 20 Amp, and 10 Gauge wire for 30 Amp
Features
- 20 Amp, 125/250 Volt Inlet
- NEMA L14-20P Locking Power Inlet
- UL and C-UL Certified, E237606
- 1-year Limited Warranty
Common Uses
- Generator
- Transfer Switch
- Cabin Power
- Residential
- DIY
Downloads
15, 20 and 30 Amp Straight Blade or Locking Inlets
AC WORKS® Brand Limited Warranty
