AC WORKS® [ASINL1520P-FC] 20A 3-Phase 250V L15-20P Power Input Inlet UL and C-UL listed with Cover
This AC WORKS® brand inlet wiring device is a heavy-duty power input connection device with a weather cover. L15-20 Inlet is used for an industrial and commercial grade flange inlet. This inlet works with a 12 or 10 AWG (American Wire Gauge) or above, copper wire, and is commonly used in residential, transfer switches, cabins, and generator power. Included with your purchase is a 1-year limited warranty.

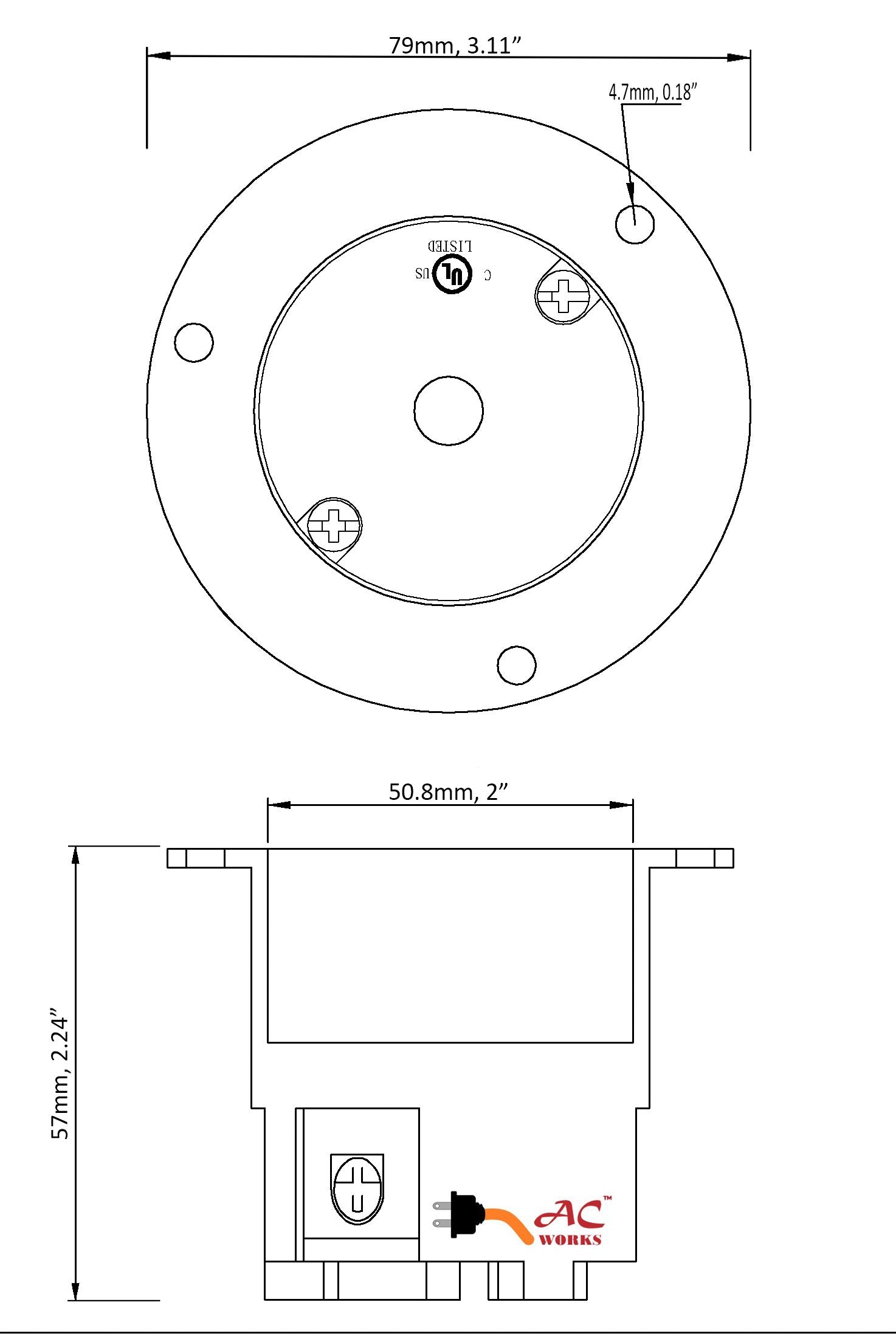

This product requires mounting holes with a saw size between 2.25'' (57.15mm) to 2.5'' (63.5mm).
Note: 18 Gauge wire is for 10 Amp, 16 Gauge wire is for 13 Amp, 14 Gauge wire is for 16 Amp, 12 Gauge wire is for 20 Amp, and 10 Gauge wire for 30 Amp
Features
- Industrial, Generator, Transfer Switch, and Cabin Power Inlet
- 3-Phase 20 Amp, 250 Volt Inlet
- NEMA L15-20P 3-Phase 250 Volt Locking Power Inlet
- Max 8,660 Watts
- UL and C-UL Certified, E237606
- 1-year Limited Warranty
Common Uses
- Generator
- Transfer Switch
- Cabin Power
- Industrial
