AC WORKS® [ASINL530P-FC] 30A 125V L5-30P Power Input Inlet UL and C-UL Listed with Weather Cover
This AC WORKS® brand inlet wiring device is a heavy-duty power input connection device with a weather cover. L5-30 Inlet is used for an industrial and commercial grade flange inlet. This inlet works with 10 AWG (American Wire Gauge) copper wire and is commonly used for boats, RVs and small trailers or cabins, residential, transfer switches, and generators. Included with your purchase is a 1-year limited warranty.

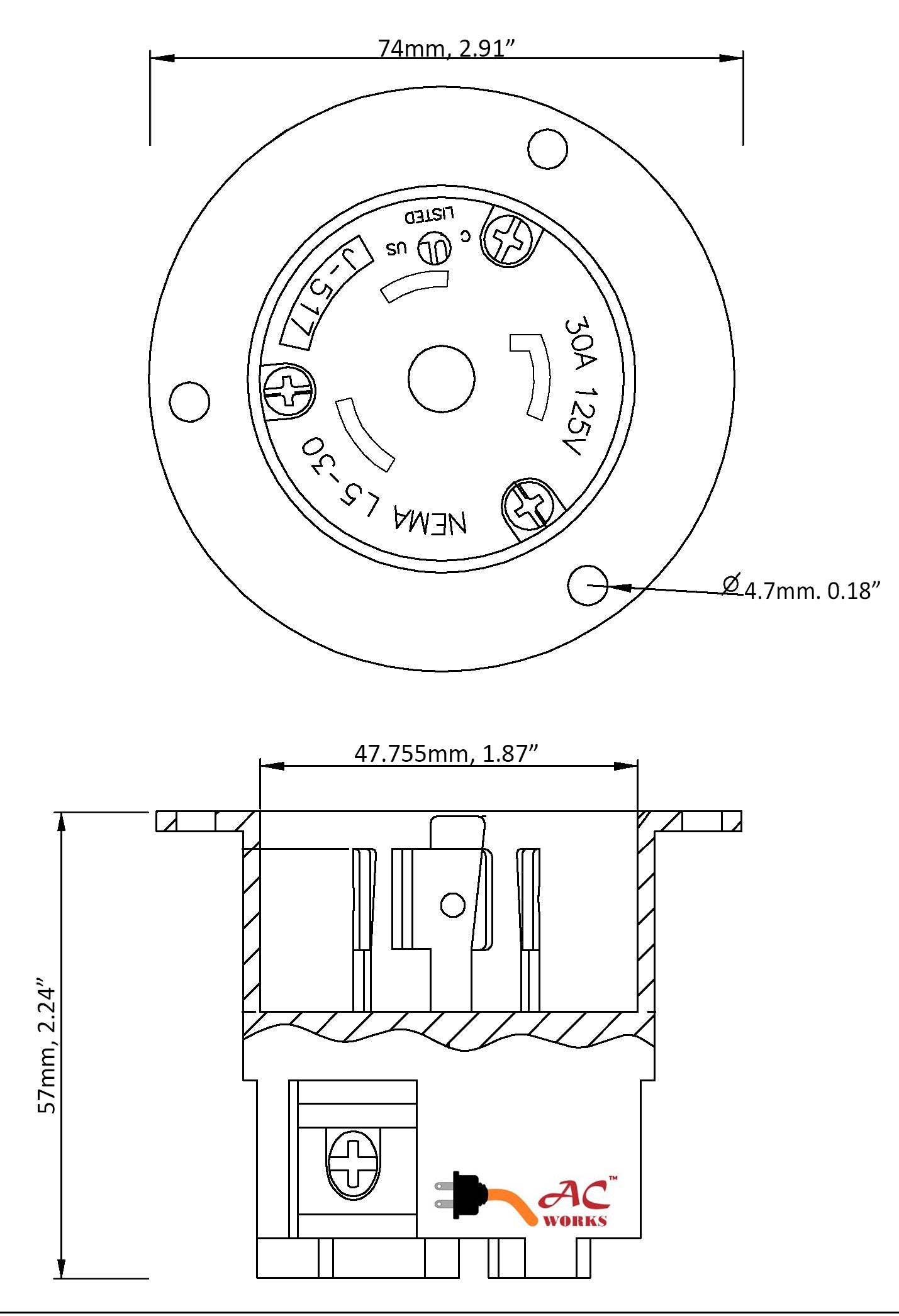

This product requires mounting holes with a saw size between 2.10'' (53.34mm) to 2.3'' (58.42mm).
Note: 18 Gauge wire is for 10 Amp, 16 Gauge wire is for 13 Amp, 14 Gauge wire is for 16 Amp, 12 Gauge wire is for 20 Amp, and 10 Gauge wire for 30 Amp
California Residents: See Proposition 65 Information
- Residential, Generator, Transfer Switch, and Cabin Power Inlet
- 30 Amp, 125 Volt Inlet
- NEMA L5-30P Locking Power Inlet
- UL and C-UL Certified, E237606
- Screws Included
- 1-Year Limited Warranty
We have created a USER MANUAL to guide you through the proper use of this product.
