AC WORKS® [ASINL620P] 20A 250V L6-20P Power Input Inlet UL and C-UL Listed
This AC WORKS® brand inlet wiring device [ASINL620P] is a heavy-duty power input connection device. It is used for an industrial and commercial grade flange inlet. This inlet works with 12 or 10 AWG (American Wire Gauge) copper wire and is commonly used for boats, RVs and small trailers or cabins, residential, transfer switches, and generators. Included with your purchase is a 1-year limited warranty.

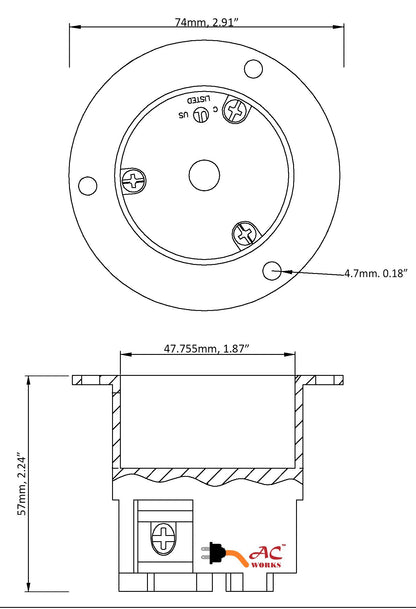

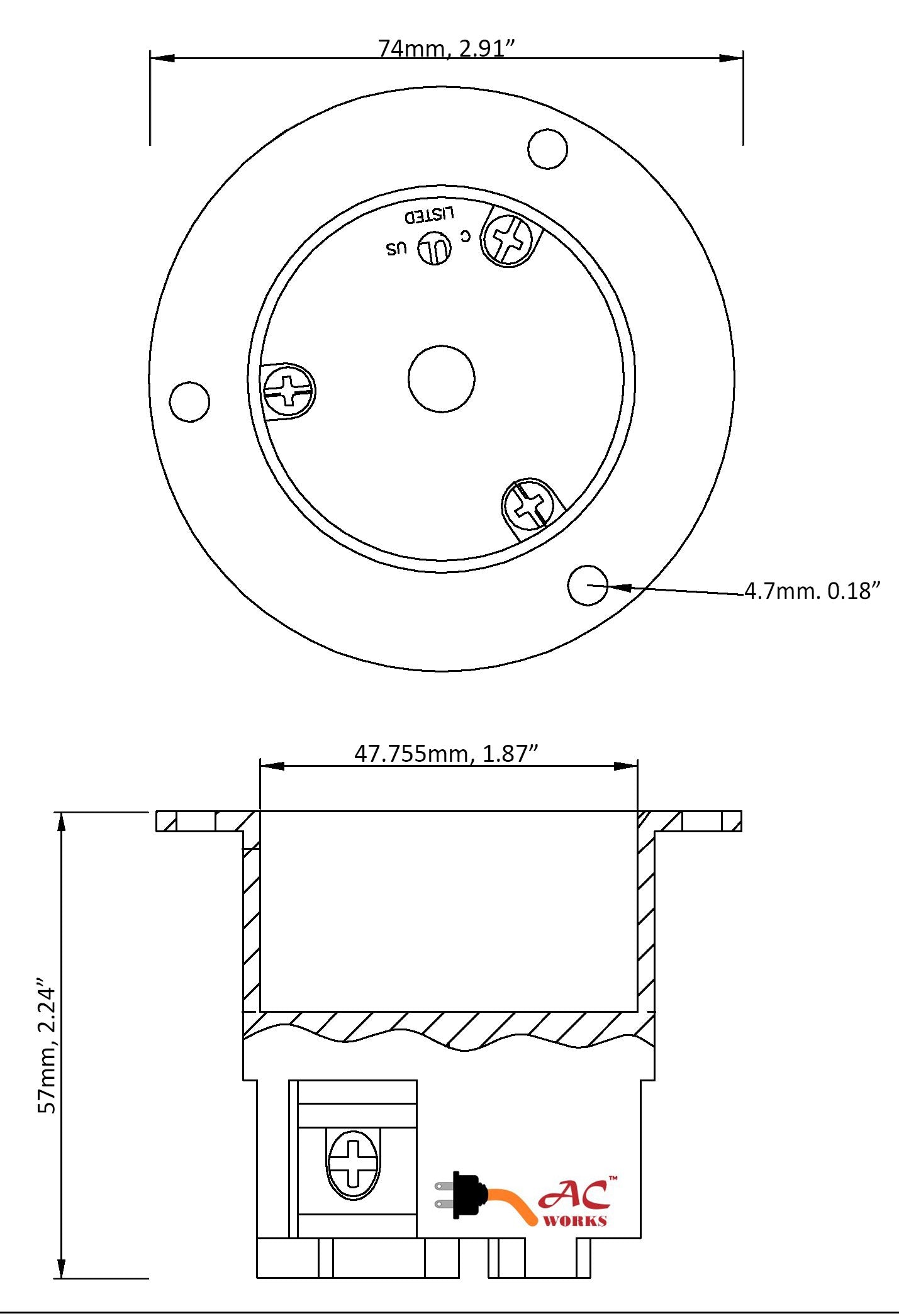

This product requires mounting holes with a saw size between 2.10'' (53.34mm) to 2.3'' (58.42mm).
Note: 18 Gauge is for 10 Amp, 16 Gauge is for 13 Amp, 14 Gauge is for 16 Amp, 12 Gauge is for 20 Amp.
Features
- 20 Amp, 250 Volt Inlet
- NEMA L6-20P Locking Power Inlet
- UL and C-UL Certified, E237606
- 1-year Limited Warranty
Common Uses
- Generator
- Transfer Swtich
- Cabin Power
- Residential
Downloads
AC WORKS® Brand Limited Warranty
15, 20 and 30 Amp Straight Blade or Locking Inlets
