AC WORKS® [FML2220R] 20A 277/480V NEMA L22-20R Flush Mount Locking Industrial Grade Receptacle

  • $34.99 CAD
  • Save $11 CAD

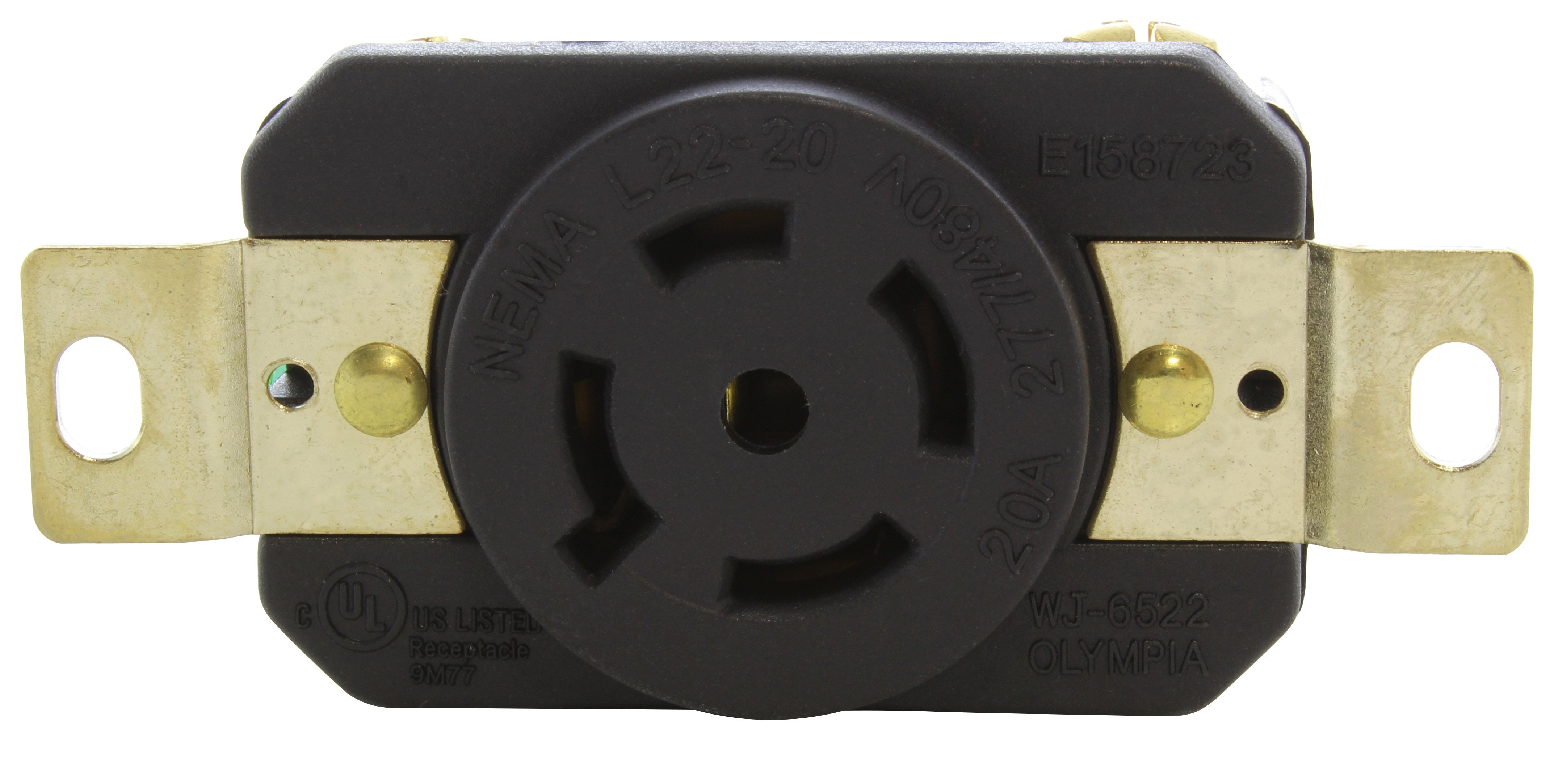

This AC WORKS® brand female outlet receptacle features a 4-pole, 5-wire grounding system.  It is a NEMA L22-20R, 20 Amp, 277/480 Volt flush mount locking design.  This product is installed into your generator to repair or change your generator receptacle.  It features chemical and impact-resistant housing along with a quick installation process.  The FML2220R is UL and C-UL certified.  Included with your purchase is a 1-year limited warranty.

Note: 18 Gauge wire is for 10 Amp, 16 Gauge wire is for 13 Amp, 14 Gauge wire is for 16 Amp, 12 Gauge wire is for 20 Amp, and 10 Gauge wire for 30 Amp


  • NEMA L22-20R, 20 Amp, 277/480 Volt Flush Mount
  • Convention Location Locking Receptacle
  • 4-Pole and 5-Wire Grounding
  • Popular for Use With Industrial and Warehouse Equipment
  • UL and C-UL Certified, Conforms to E237606

Common Uses

  • Industrial
  • Warehouse Equipment


AC WORKS® Brand Limited Warranty
